Madtown Guitars

Hand-Crafted Innovative Guitars

Hand-Crafted Innovative GuitarsHand-Crafted Innovative Guitars

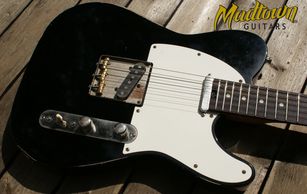

THE MADTOWN® GRAVELCASTER

The Madtown® Gravelcaster offers up an impressive host of solutions for the modern player. It sports our custom neck profile and wider nut width,  a 10"-16" compound fingerboard radius and 22 frets. The custom Madtown control plates are designed to give the player more room between the switch and knob, while the Skidplate and sculpted rear body contour system provide for a much greater level of upper register fingerboard access and player comfort than has ever been offered before.  Pair all of that with the latest in state-of-the-art custom handwound pickups and electronics technology and the Gravelcaster is born.

GENERAL specifications / BUILD notes

BODIES

The Gravelcaster bodies are crafted with a solid 1 or 2 piece select body, many  with a  book-matched select figured tops. Species include Swamp Ash, Black Limba, Mahogany and many others. We have chambered and semi-hollow options available as well.

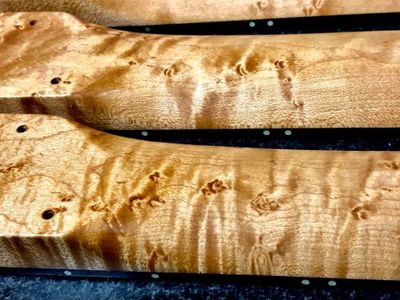

NECKS

  Standard necks are crafted of hard eastern maple with maple or rosewood fingerboards and fretted with Jescar nickel silver fret wire with hidden tangs. Solid 1/4" inch thick fingerboards have a compound 10-16" radius, with other radius offerings. Black or clay dot inlays with custom inlay work available. 25.5” scale length and Madtown's custom C profile. Measuring .812” at the first fret and .895” at the 12th. Fitted with a genuine bone nut with a width of 1.725".  22 frets and a spoke style, two-way adjustable rod. Birdseye Maple, Red Leaf Maple and other species available.

FINISHES

 The Gravelcaster is offered in our special thin satin/semi-gloss nitrocellulose lacquer finishes and in custom poly finishes.  We offer a wide variety of finish options from occasional checks in warm and inviting natural tones to heavily checked-lightly aged solid colors, as well as gloss finishes and custom metal flake/sparkle finishes.

HARDWARE

Standard tuning machines are nickel Kluson Supreme 18:1 ratio, with many other options available. The bridges are Madtown's own correct nickel plated steel with brass or stainless CNC compensated saddles.  Custom Madtown  nickel control plates and Skidplates are standard equipment on all Madtown Gravelcaster guitars with custom engraving options available as well.

PICKUPS

 The Gravelcasters are typically loaded with factory direct matched pairs of Lindy Fralin pickups, unless specified. There are several humbucker models and other variants as well. We can do any combination and source any pickup desired.

ELECTRONICS

 All Madtown® Guitars are crafted using genuine genuine CTS tight tolerance or Bourns Pro Audio potentiometers, premium capacitors, premium Oak Grigsby selector switches, Electrosockets and Pure Tone jacks. All components are tested and value measured in-house before use.

STRINGS

All Madtown® Guitars are strung using DR VERITAS Handmade Quantum Nickel strings.

CASES

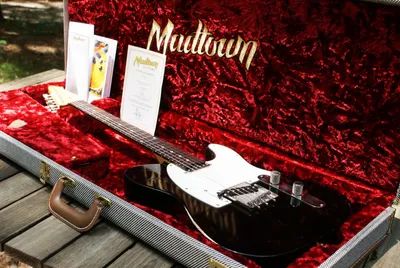

 A custom Madtown® designed G&G Quality Case is limited and available. Other case options and TSA approved ATA flight cases are all available with all Madtown® Guitars.

COLORS

 These are just some of the finishes we offer on the Gravelcasters. We apply bursts, solid colors, transparent colors, sparkle finishes, candy colors as well as other finishes.

EBONY

HARVEST GOLDBURST

HARVEST GOLDBURST

HARVEST GOLDBURST

HARVEST GOLDBURST

HARVEST GOLDBURST

FIESTA RED

HARVEST GOLDBURST

FIESTA RED

FIREFIGHT

FIESTA RED

TRANS BLACK

TRANS BLACK

BLACK CHERRY

TRANS BLACK

CANDY OVER SPARKLE

CANDY OVER SPARKLE

CANDY OVER SPARKLE

CERULEAN OCEAN

CANDY OVER SPARKLE

CANDY OVER SPARKLE

NATURELLE

MAGMA FLOW

NATURELLE

BLONDE

MAGMA FLOW

NATURELLE

MAGMA FLOW

MAGMA FLOW

LAKE PLACID BLUE

LAKE PLACID BLUE

LAKE PLACID BLUE

LAKE PLACID BLUE

GUNSTOCK

LAKE PLACID BLUE

GUNSTOCK

LEMON

LAKE PLACID BLUE

GUNSTOCK

SAVANNAH SUNSET

SAVANNAH SUNSET

SAVANNAH SUNSET

AMBER

SAVANNAH SUNSET

SAVANNAH SUNSET

ICE AGED BLUE

ICE AGED SILVER

ICE AGED SILVER

ICE AGED SILVER

ICE AGED SILVER

ICE AGED SILVER

VIBRANT AMBER

NEW COLORS COMING SOON
